Description

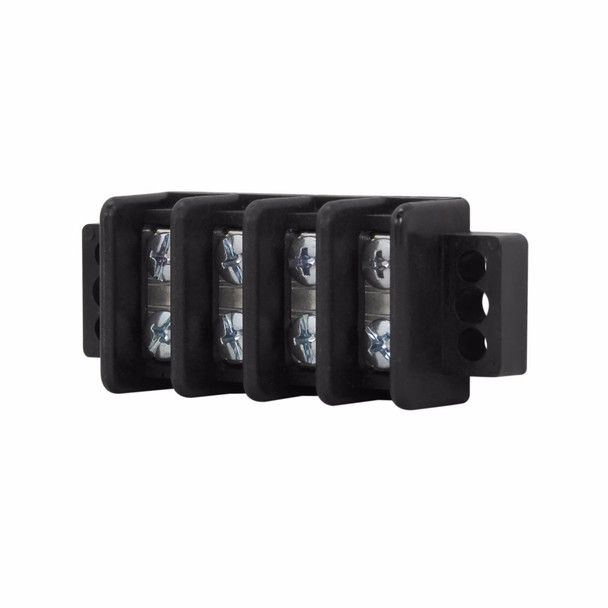

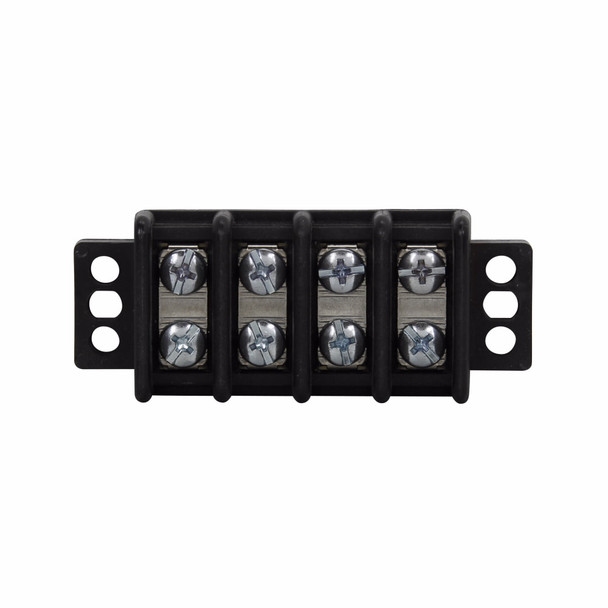

Bussmann TB300-12 Terminal Block
Bussmann Terminal Block, 12-Pole Double Row, Series: TB300, 600 V, 30 A, 22 to 8 AWG Wire, 0.562 in Center Spacing, #8-32 Screw, 16 in-lb, Panel Mount, #8-32 TPI Screw, -40 to 130 deg C, Brass/Steel/Thermoplastic, Black, 7.75 in L x 1.33 in W x 0.81 in H
Additional Description: BUSS-TB300-12 (N) BARRIER BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann TB300 series panel mount terminal block connector, Breakdown voltage 7500V, 600V, 30A, Double row, barrier, Twelve-pole, #8-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | #8-32 TPI Screw |
| Connection type | Philips Slot Screw |
| Dimensions | 7.75 in L x 1.33 in W x 0.33 in H |
| Dimensions | 7.75 in L x 1.33 in W x 0.81 in H |
| Material | Brass/Steel/Thermoplastic |
| Material | Thermoplastic |
| Mounting type | Panel |
| Screw Size | #8-32 |
| Series | TB300 |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 16 |
| Torque Rating | 16 in-lb |
| Type | 12-Pole Double Row |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 22 to 8 |
| Wire Size | 22 to 8 AWG |
