Description

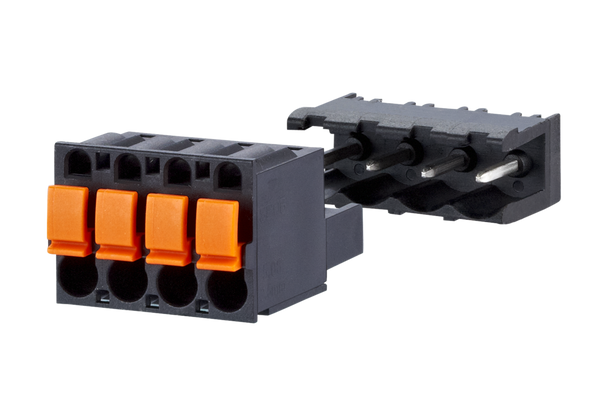

- spring clamp terminal block, pluggable
- centerline 5.08 mm, direction of connection vertical 0°
- fittable without loss of poles
- color black
- finger push-button, wire entry uncodeable side parallel to plug direction
Resources
| SP066xxVBPC | | View DataSheet |
|---|
Specifications
| min. number of poles: | 2 |
|---|---|
| max. number of poles: | 24 |
| Insulating material class: | CTI 600 |
| clearance/creepage dist.: | 3.58 mm |
| Protection category: | IP20 |
| Min. insul. strip length: | 10 mm |
| Rated current: | 12 A |
| Connection capacity (single-wire): | 0,08 - 2,5 mm² |
|---|---|
| Connection capacity (single-wire): | AWG 28 - 12 |
| Connection capacity (multi-wire): | 0,08 - 2,5 mm² |
| Connection capacity (multi-wire): | AWG 28 - 12 |
| insulating material: | PA66 |
|---|---|
| flammability class: | V0 |
| spring material: | Spring steel |
| contact material: | CuSn |
| Contact surface: | Sn |
| Glow-Wire Flammability GWFI: | 960 °C acc. to IEC 60695-2-12 |
| Glow-Wire Flammability GWIT: | 775 °C acc. to IEC 60695-2-13 |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
